GD-F02-20 20L Laboratory Electric Asphalt Mixer / Mixture Blender

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd
[China]

Address
No. 9-10, Jintai Bldg., No. 23, Nanping West Road, Nan'an District, chongqing Chongqing Chongqing
Phone
86-023-62984892
Contact name
Jane Ching

Quick Information

  • Brand Name: Gold
  • Place of Origin: China
  • Model Number : GD-F02-20
  • Mixer Type : Agitator
  • Application : Viscous Fluid
  • Max. LoadingCapacity : 20L
  • Display : Digital
  • Type : Bench type, desktop type

Description

GD-F02-20 20L Laboratory Electric Asphalt Mixer / Mixture Blender






Introduction:

1. GD-F02-20 20L Laboratory Electric Asphalt Mixer / Mixture Blender is used to blend the test specimen of bituminous

mixtures before production.



2.The size of instrument is small, space saving and easy to operate. It is a preferred instrument for blending

the bituminous mixture for bitumen production companies, road and bridge building units, colleges and

scientific research institutes.


Main technical features:

1. GD-F02-20 20L Laboratory Electric Asphalt Mixer / Mixture Blender adopts advanced micocomputer control technology. Temperature can be set from ambient to 200℃ at will and automatically adjusted by PID. The blending time can be controlled automatically. It

achieves the automation for operation.



2.  It has protecting function for phase sequence which can prevent the machine from damage because of

phase sequence fault.



3.  Floor type structure. Reasonable design and easy to use.


Main technical specifications


Product name GD-F02-20 20L Laboratory Electric Asphalt Mixer / Mixture Blender
Blending amount 20L
Temperature control range Room temperature~200℃
Temperature control accuracy ±5℃
Timing range  (0~999) s
Timing accuracy ±0.1s
Rotation rate of paddle Complete revolution 47R/min, Autorotation 76R/min
Blending motor Alternating current 380V, 550W;1400R/min;50Hz
Lifting motor Alternating current 380V,250W;1400R/min;50Hz
Overall dimension 600mm×400mm×1300mm
Net weight 215Kg
Power supply AC (380±10%) V; 16A; 50Hz(three-phase four-wire with null line)
Ambient temperature  (-5~+50)℃
 Relative humidity ≤80%

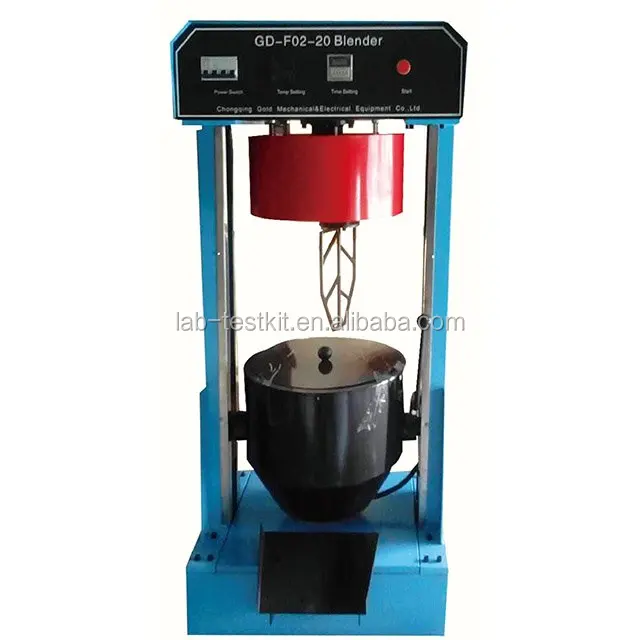

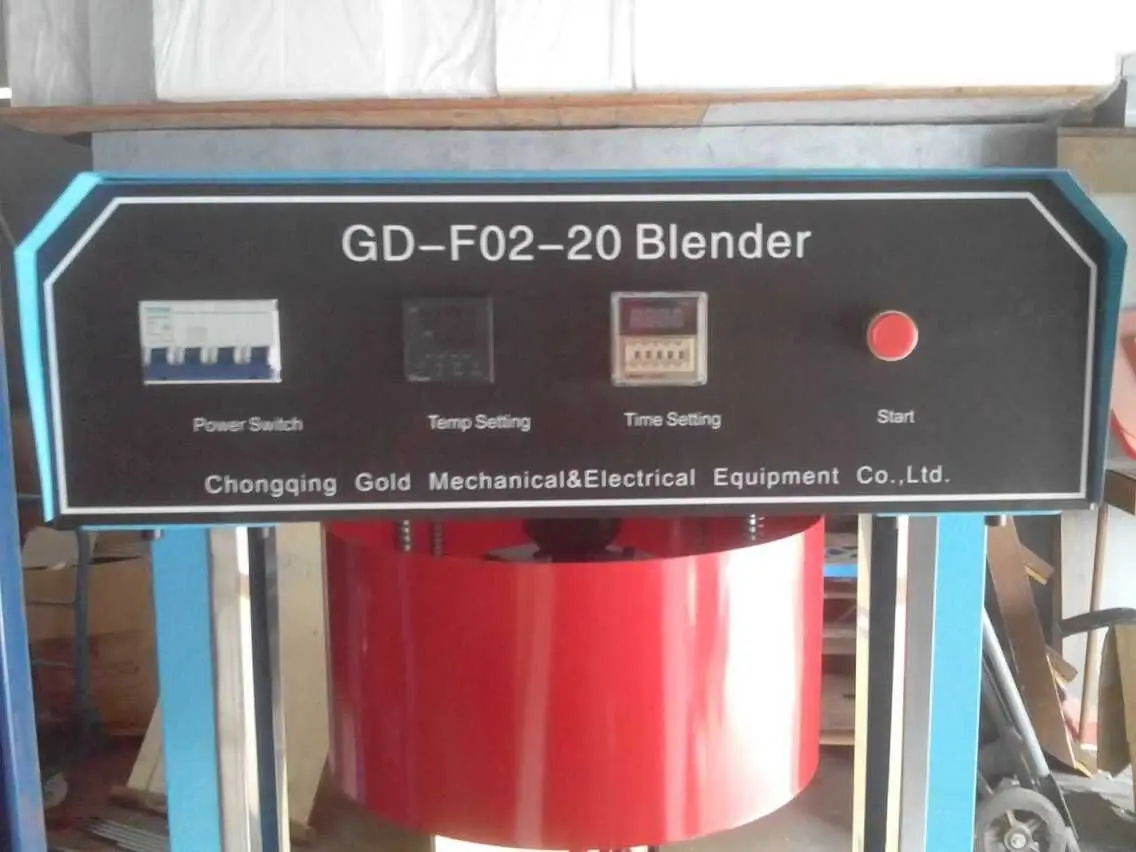

Detail Images:

 GD-F02-20 20L Laboratory Electric Asphalt Mixer / Mixture BlenderGD-F02-20 20L Laboratory Electric Asphalt Mixer / Mixture Blender






Contact Us:




Price

  • Delivery Port : Shanghai

Packaging & Delivery

  • Packing :wooden case
  • Delivery Lead Time : 10 working days
  • Supply Ability : 100 sets/month
